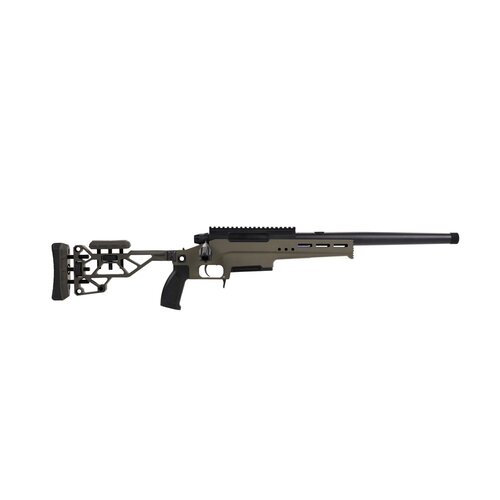

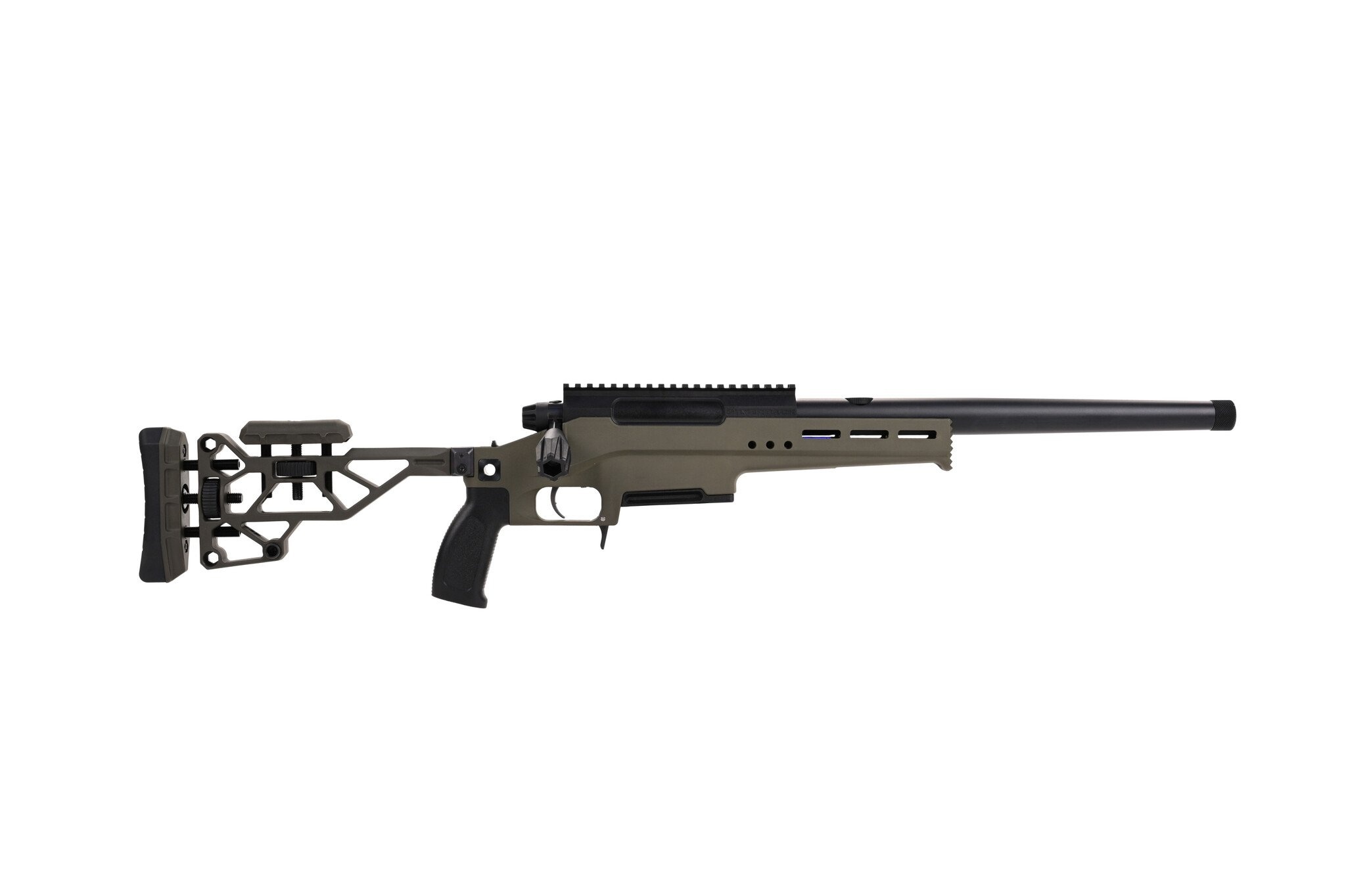

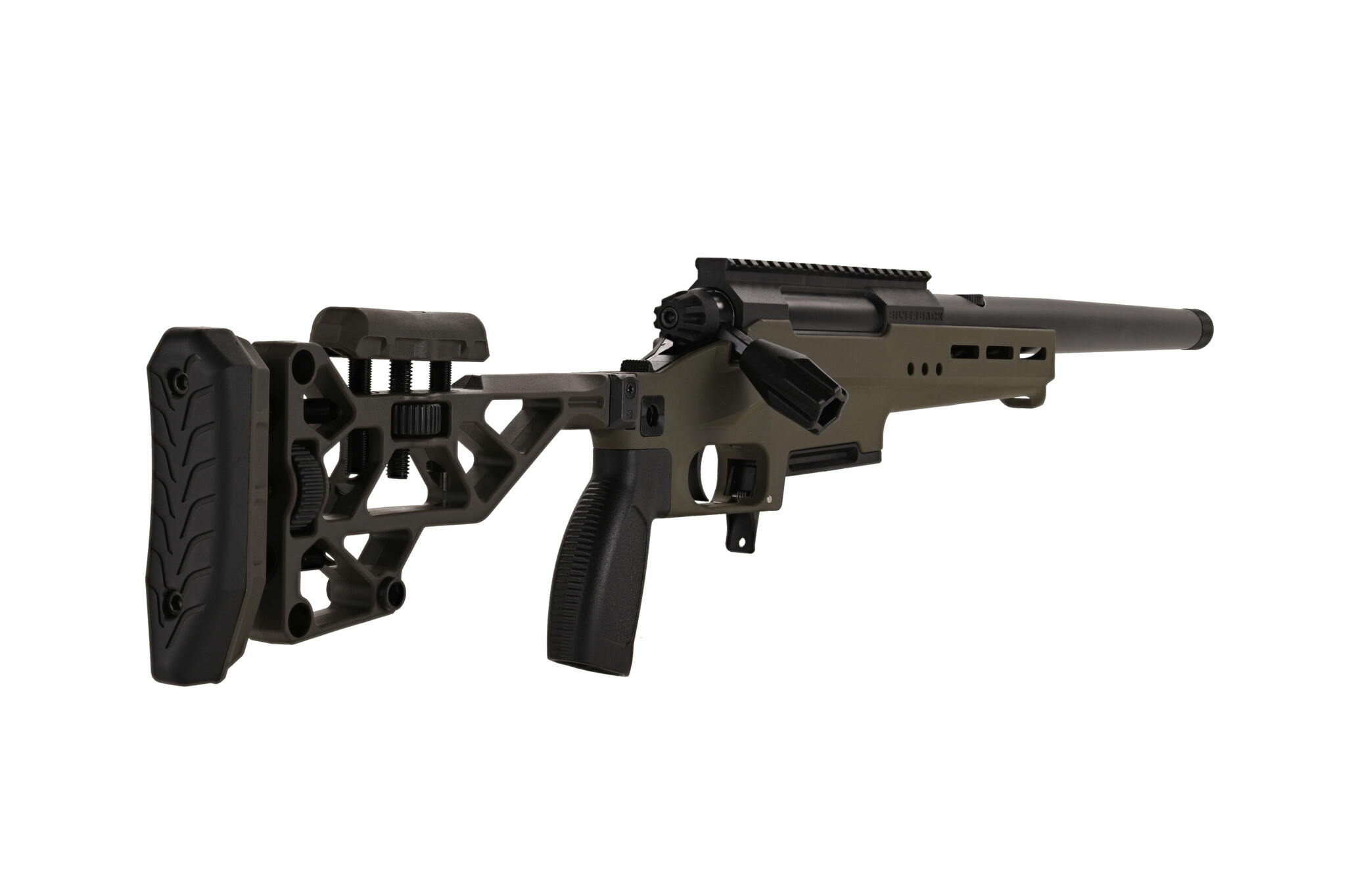

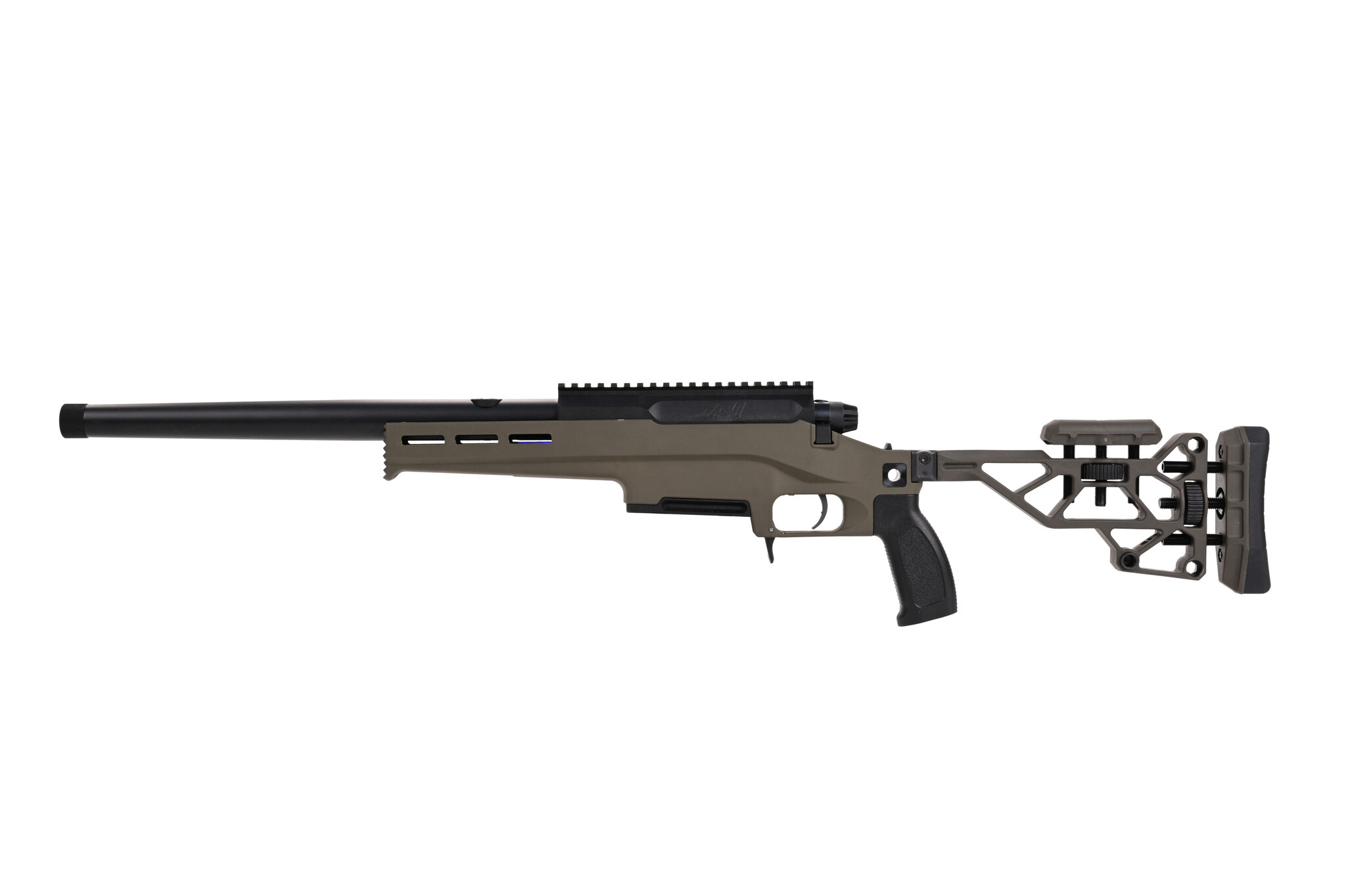

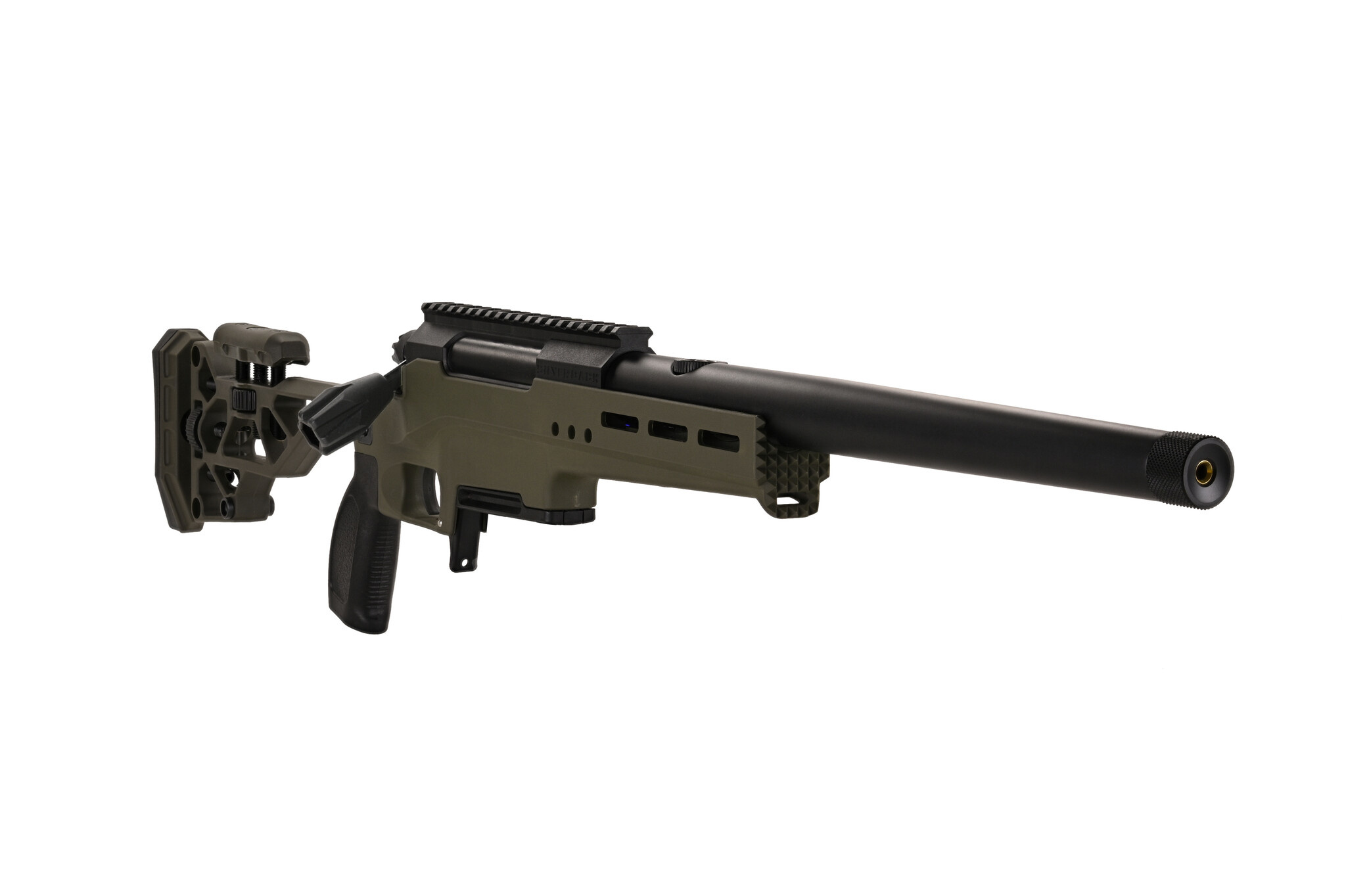

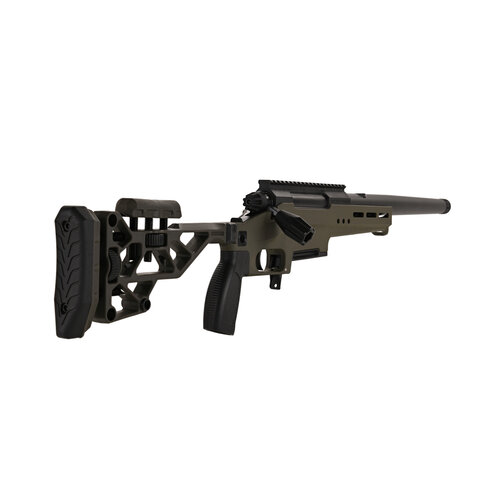

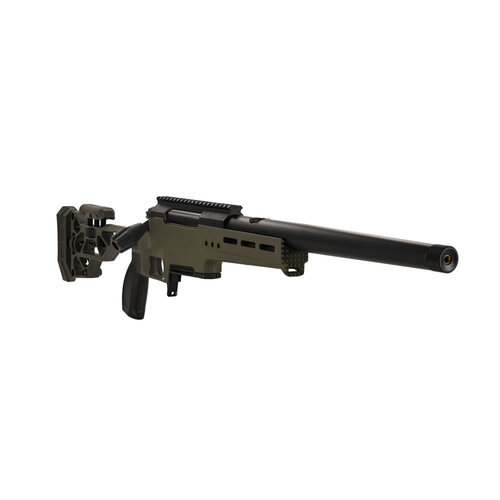

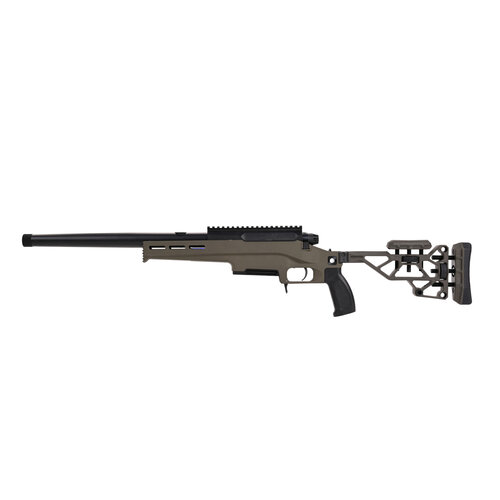

TAC-41L Bolt Action Rifle, Lite chassis & Recon stock, Sport version, Green – F-MARK

General

• Minimum length: 906mm
• Maximum length: 936mm
• Weight:  1.98 kg (with magazine)
• Reversible right handed/ left handed bolt handle.
• Ambidextrous features: magcatch, safety and hop-up adjustment.



Receiver:

• PA6 nylon receiver, glass fiber reinforced
• High Picatinny rail for mask users



Barrel:

• Tapered Aluminium outer barrel
• Barrel length: 330 mm, 6.05 brass AEG type
• Quick change barrel (bayonet lock + clamp into the receiver)
• M24x1 threaded outer barrel (compatible with any M24 x1 muzzle device)
• 1 barrels spacers



Magazine / feeding system:

• Magazine capacity: 48 bbs
• Feeding ramp buffer capacity: 20 bbs
• Quick release button inside the magwell to empty the feeding tube.
• Steel magcatch, AK style.



Bolt:

• Bolt usable volume: 41 cc
• 6061 T6 aluminium cylinder and cylinder head, grey anodized
• 6061 T6 aluminium piston, red anodized, with 90° piston end (carbon steel)
• PA6 glass fiber reinforced spring guide and bolt end cap.
• APS 13 mm spring compatible, 90 Newton stock spring pre installed + extra 120 Newton spring included (Installed type spring may vary depending on countries regulations, extra spring type may vary or may not be included depending countries regulations , please check your retailer website for more information).
• Quick change bolt
• 270 grams



Trigger group:

• Stainless steel piston sear
• Stainless steel spring guide stopper
• Stainless steel trigger box
• Steel safety
• 90° piston sear sliding on 2 ball bearings
• Preload adjustment
• Dual stage adjustment



Hop-up:

• Polycarbonate body
• TDC design, can be used no matter the scope used.
• 50 indexed positions (by 15 µm increment)
• AEG hop-up rubber compatible
• 60° hopup rubber AEG
• anti double-feed system





Stock:

• Fiberglass reinforced Nylon construction
• Picatinny stock attachment
• 3 MLOK slots on each side
• 2 MLOK slots under
• 2 QD points for slings, central position, (optional back QD points, SBA-STK-39)



Available in 3 colours:

• Black stock: SBA-T41-LRS-BK
• FDE stock: SBA-T41-LRS-FDE
• Green stock: SBA-T41-LRS-OD





User Manual

Exploded Views
