Spartan Electronics Control Board Black Edition for MTW M4/308/Shotgun/Article Series

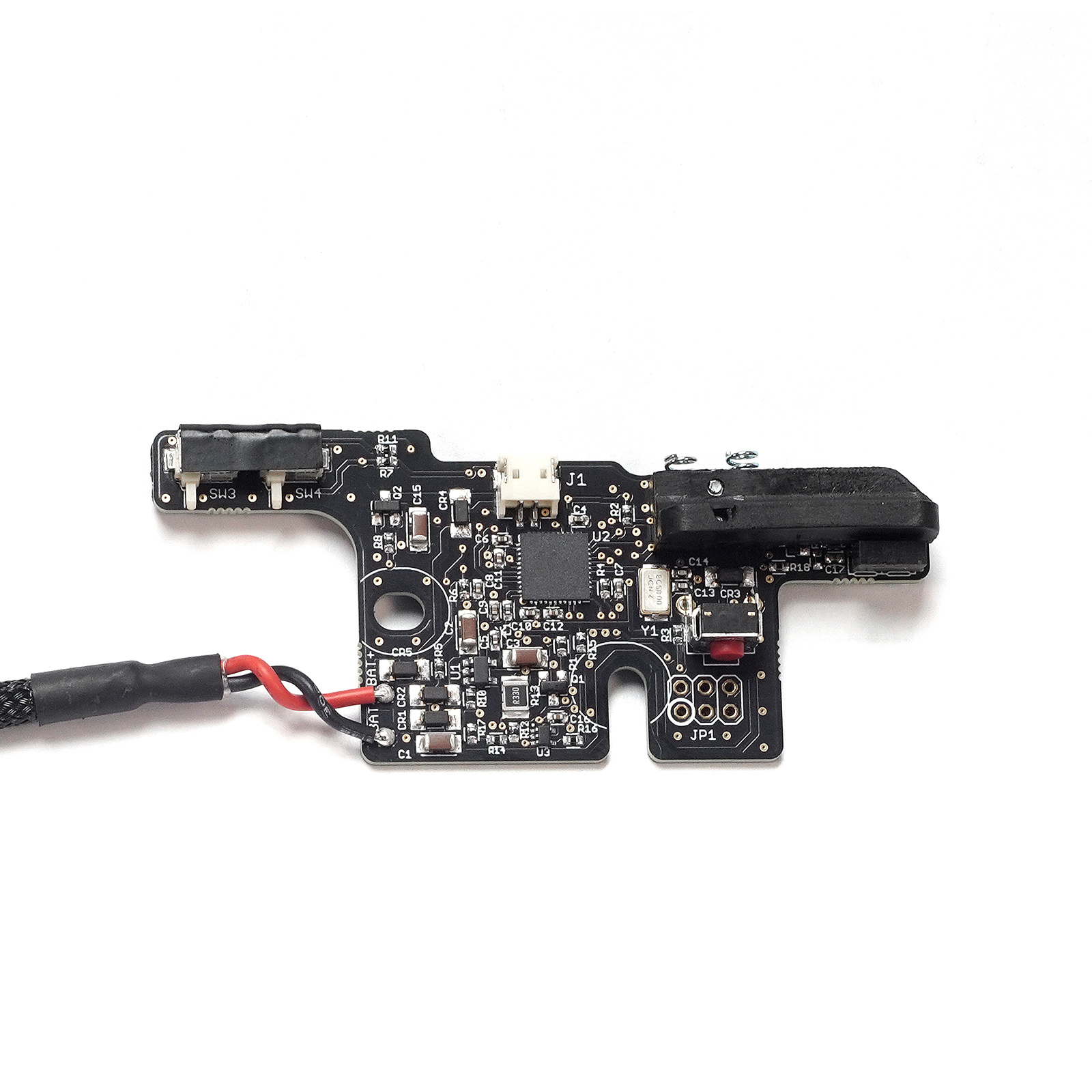

Replacement control board for the MTW, the Spartan Electronics board is a trigger board and FCU all-in-one. The key advantage of the Spartan Electronics board is it’s simple and robust design and lower price point. Settings are primarily manipulated with use of the trigger.

Description

Fire Mode Presets

• Standard MTW
  • Semi / Full Auto
  • Semi / 3-Round Burst
  • Semi / 2-Round Burst
  • Semi / Semi
  • 2-Round Burst / Full Auto
• Shotgun
  • Semi / Full Auto
  • Semi / 3-Round Burst
  • Semi / Semi
  • Semi Anti-Spam / Semi Anti-Spam
• DMR
  • Semi / Full Auto
  • Semi / 3-Round Burst
  • Semi / Semi
  • Semi+2-Sec Delay / Semi+2-Sec Delay
• Heretic Programming
  • Semi / Full Auto
  • Semi / 3-Round Burst
  • Semi / 2-Round Burst
  • Semi / Semi
  • Semi / Binary

*Boards sold in Germany are locked in Semi / Semi mode.

8 Quick / Easy ROF Presets
Select a preset from 10RPS to 33RPS by holding down the trigger as it fires three-round bursts until desired ROF is reached.

12 Quick/Easy Dwell Presets
Set dwell by holding down trigger as it fires once per second until drop in FPS is noticed, then double-tap to step back up one preset.

Includes

• Control Board (MTW-SA-404, MTW-SA-406, or MTW-SA-409)

Compatibility

MTW-308 Compatibility

The MTW-308 is compatible with all firmware options, but ships standard with Shotgun/DMR firmware and set to DMR Mode. Replacement boards are shipped in Shotgun Mode and can be changed to DMR mode by following this guide: https://www.wolverineairsoft.com/knowledgebase/308-shotgun-firmware-configurations

Optical Selector Compatibility

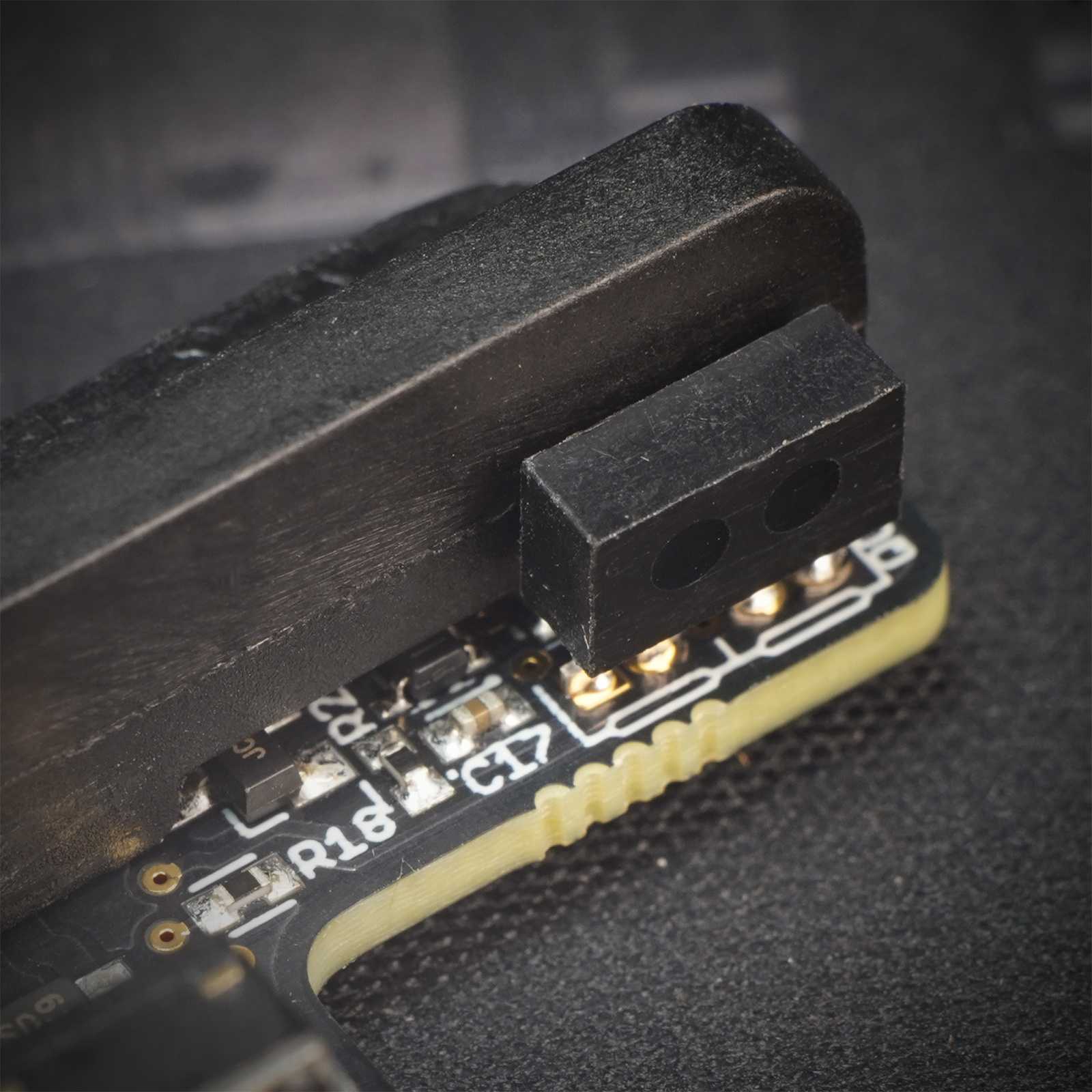

If you are replacing the control board for an MTW manufactured before Oct 1, 2021 (green board), you will need to modify your selector switch to work with the board’s optical select-fire sensor.

Manual: https://www.wolverineairsoft.com/files/documentation/MTW%20Spartan%20Electronics%20Owner%27s%20Manual.pdf
